Dash Cam Power Tap-In Loom for Range Rover Evoque 2

Power Tap-in Loom for
Overhead Console

for Range Rover Evoque 2
(2019 onwards)

This listing is for a power tap-in loom for the Range
Rover Evoque 2 (2019 -onwards).

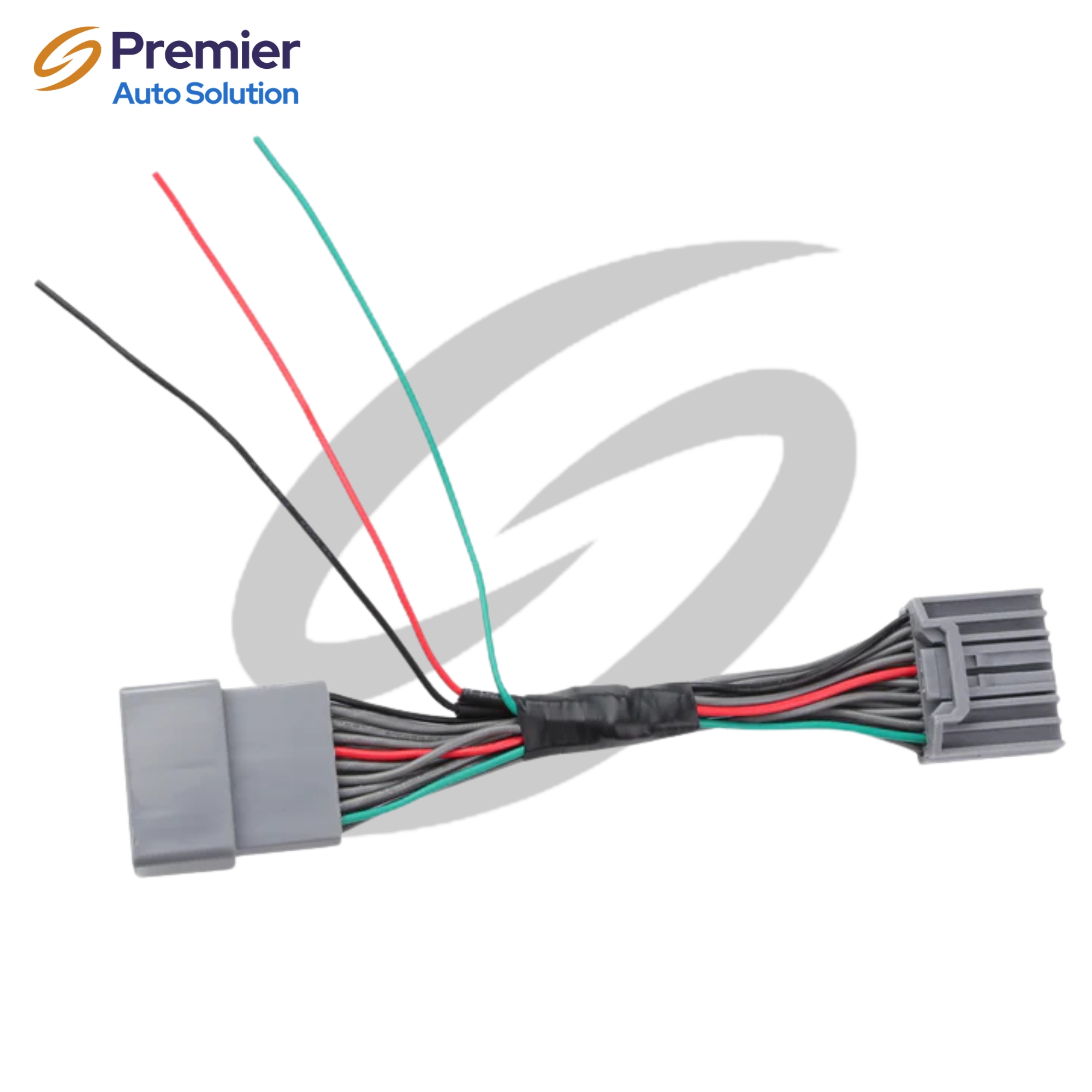

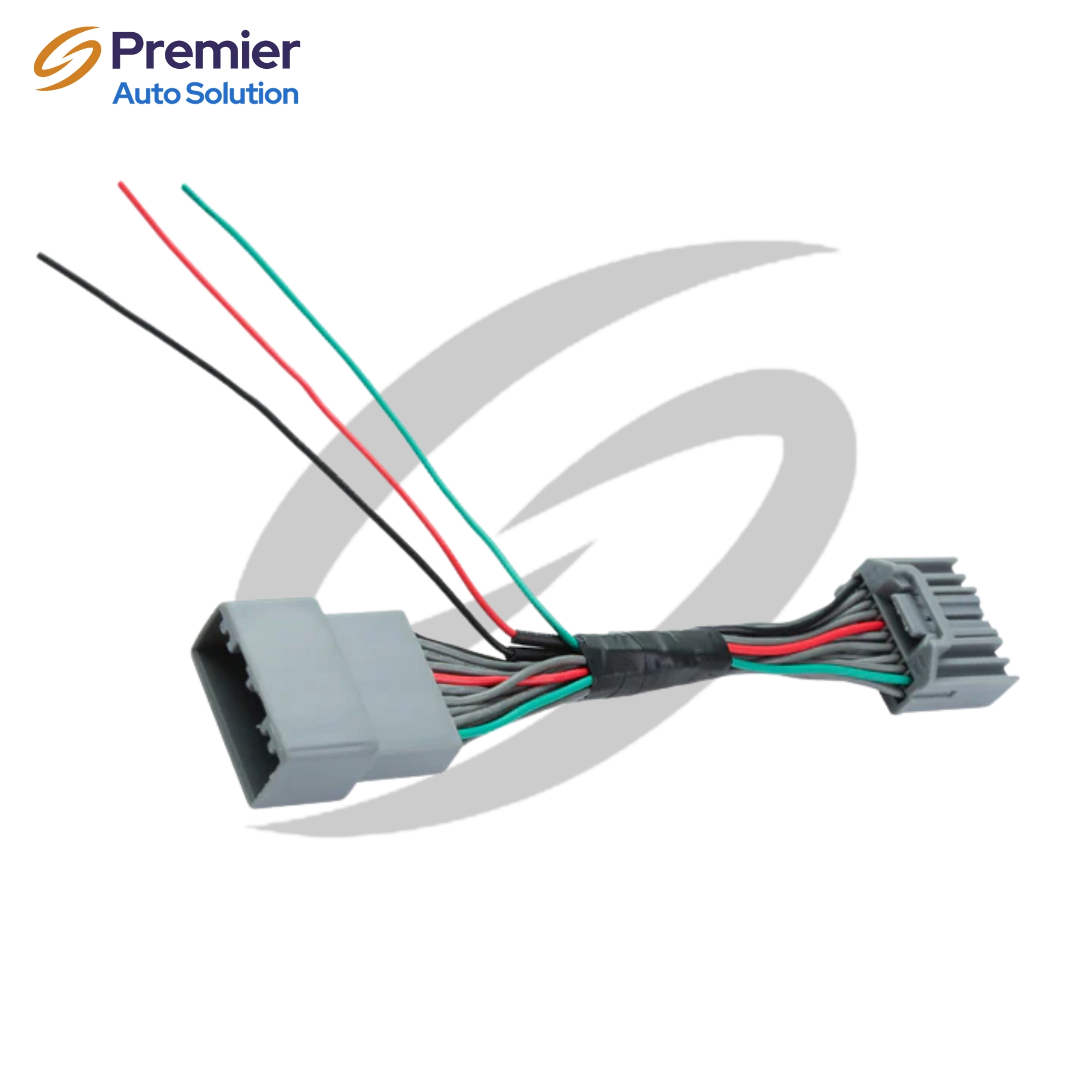

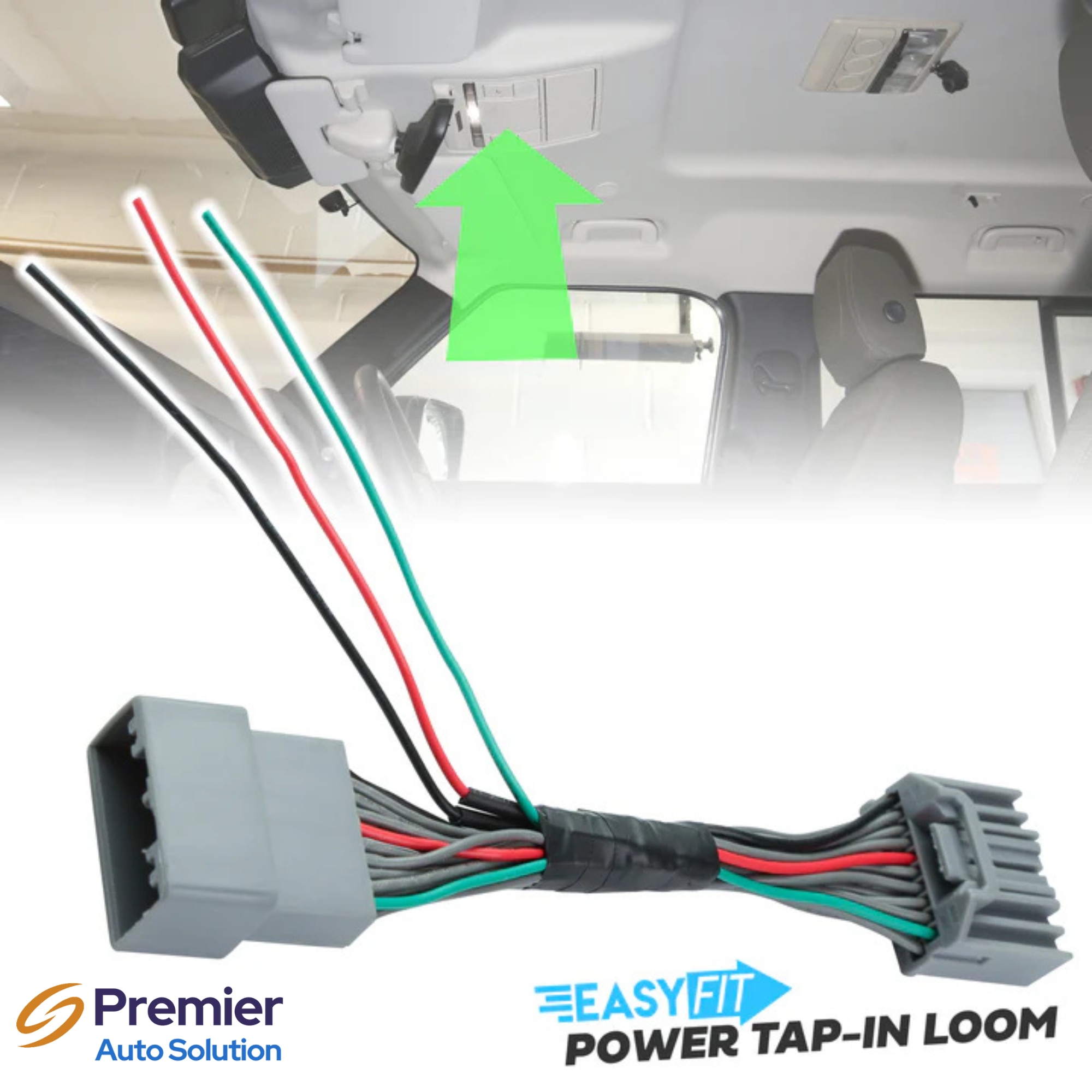

This custom made loom simply plugs into the front
overhead console and gives you 3 power take off wires that you can use
to install an accessory of your choice, dashcam etc:

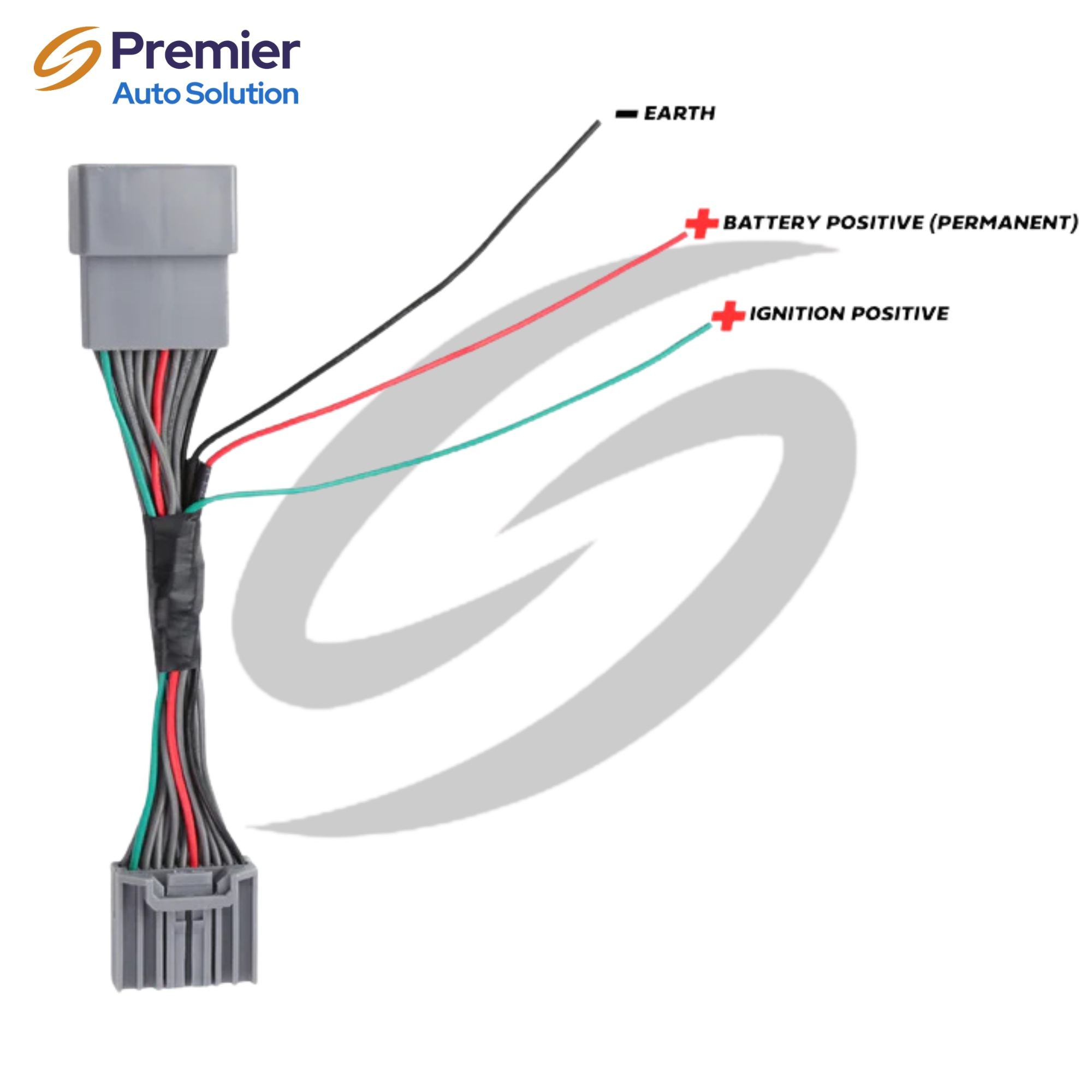

Ignition positive 12 Volts (Green
wire) – this comes live when you open the door.

Permanent battery positive 12 volts (Red
wire) – this is permanently live and is not impacted by the smart
alternator charging cycle.

Earth (Black wire)

The beauty of this is there is absolutely no
cutting/splicing needed to your vehicles wiring which may void your
warranty.

This loom is ideal to wire in a dash-cam as it puts
power to where you’ll mount the camera without having to route any long
wires round the screen (plus you’d still need to find somewhere to take
power from).

Some dash-cams come with a cigarette lighter power
loom which are just unsightly and also runs the risk of having it
unplugged.

This kit also allows you to have a permanent and
ignition live feed so you can wire your camera to have parking mode
(where supported).

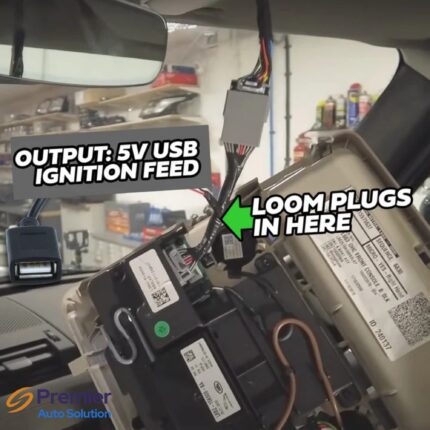

We also sell this loom kitted with a USB converter
which will step the 12v feed down to a 5v female USB port – see
our other listing to purchase this kit.

This is NOT �a
genuine Land Rover item.

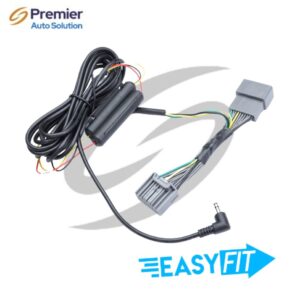

We also sell this loom kitted with Nextbase and
Garmin hardwire kits – see our other listings to purchase.

Fitting details

IMPORTANT:

Ensure you wire your accessory to the loom before
fitting to the vehicle (to prevent accidental shorting when fitting).

Disconnect your battery -ve lead before fitting the
loom to the vehicle – this makes it less likely for power surges that
could damage car circuits when plugging / unplugging the overhead
console.

Ensure there is fuse protection in any circuit you
add to the loom – we suggest a 2 Amp fuse.

The power output from this loom is 12v many
dashcams use 5V USB power source – ensure you are connecting a device
/ circuit to this loom that uses 12v input ( eg a 12v to 5V USB
converter )

Connecting any circuit to the battery live feed
could lead to a flat battery unless the attached circuit contains a
low voltage protection circuit that stops the power drain when the
voltage falls below 12v etc

The ignition live feed comes from the body control
module – if this is overloaded the circuit is isolated and can be
reset with an ignition cycle ( turn the car on and off again )

The battery positive feed comes via fuse 27 (5 Amps
) �in the fusebox behind the glove box.

Some badly designed electronic devices could
produce power spikes and electrical interference that could damage
circuits on the car or produce radio interference – we are not able to
test all devices so cannot accept any responsibility for any damage
from using this loom on your car but please report any issues us so we
can investigate and warn others.

If you have any issues with your car that needs
investigation by a Land Rover dealer it is best to disconnect this
loom so the vehicle is returned to its original configuration.

If you are only using the ignition and earth wires
make sure that the battery positive wire is insulated so that it
cannot short to ground.

Some devices like dashcams can cause interference
with DAB radio reception and rain sensor circuits – be sure to these
these after adding your device.

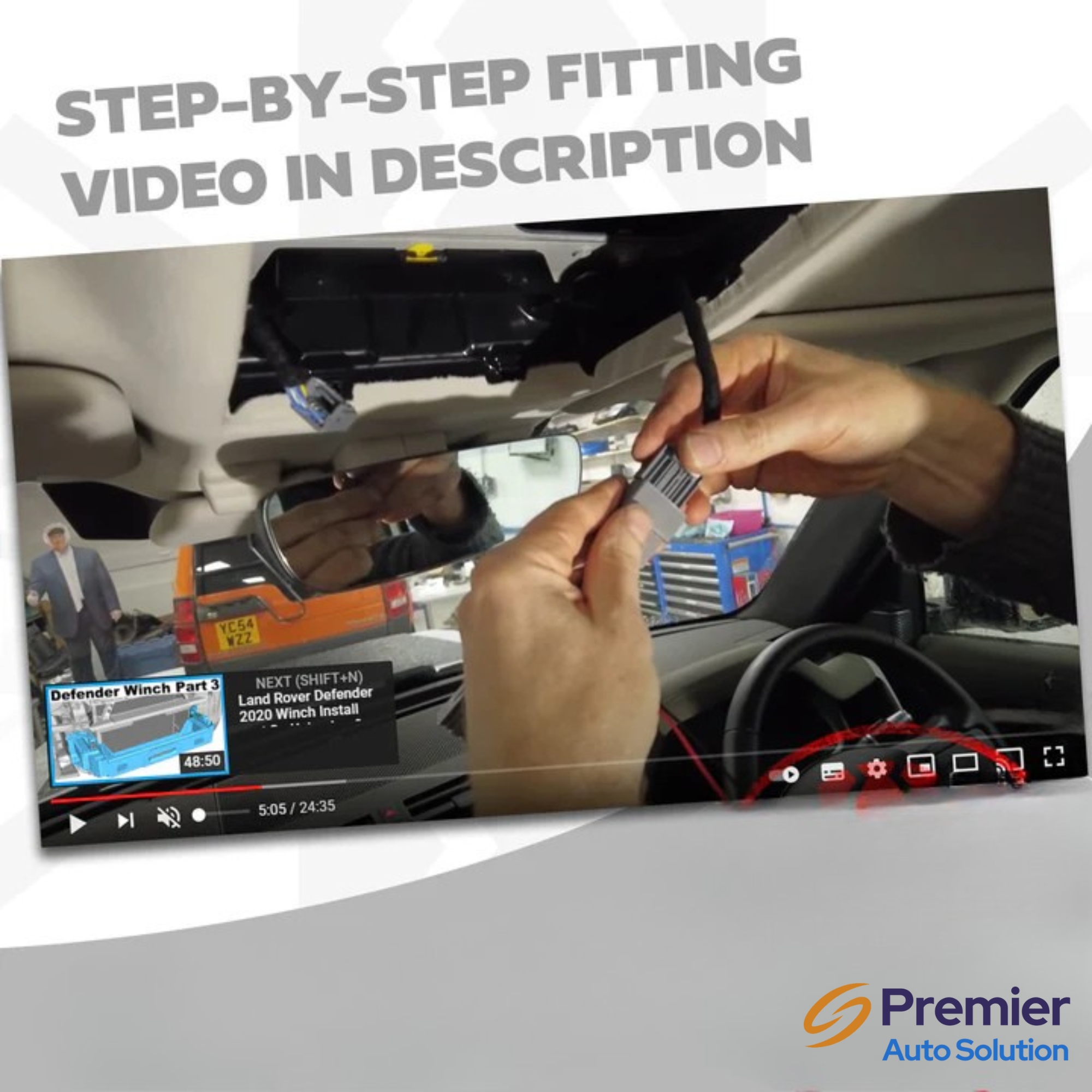

See below video.

Note: This listing is for the tap-in loom only
and does not include other items show in the video.

Which vehicles will this
fit?

SAFETY NOTICE: Please do
NOT fit this loom to any other vehicle than it is intended for –
although connectors may appear the same and physically fit, wiring will
differ.

This item WILL
fit the Range Rover Evoque 2 models from 2019 onwards.

This item WILL
fit the Range Rover Evoque 1 models from around 2014 -2016 with the late
type console.

This item WILL
NOT fit the Range
Rover Evoque 1 with the early type console (from 2011 to around 2014)
