Dash Cam Wiring Kit for Range Rover Evoque 2 – USB-A

Power Tap-in Loom + USB-A
adapter KIT for Overhead Console Ignition Feed

for Range Rover Evoque 2
(2019 onwards)

This listing is for a plug and play power tap-in loom plus
USB adapter for the Range Rover Evoque 2 (2019 onwards).

IMPORTANT: This loom is only suitable for
Evoque’s with the LATE overhead console (see pics).

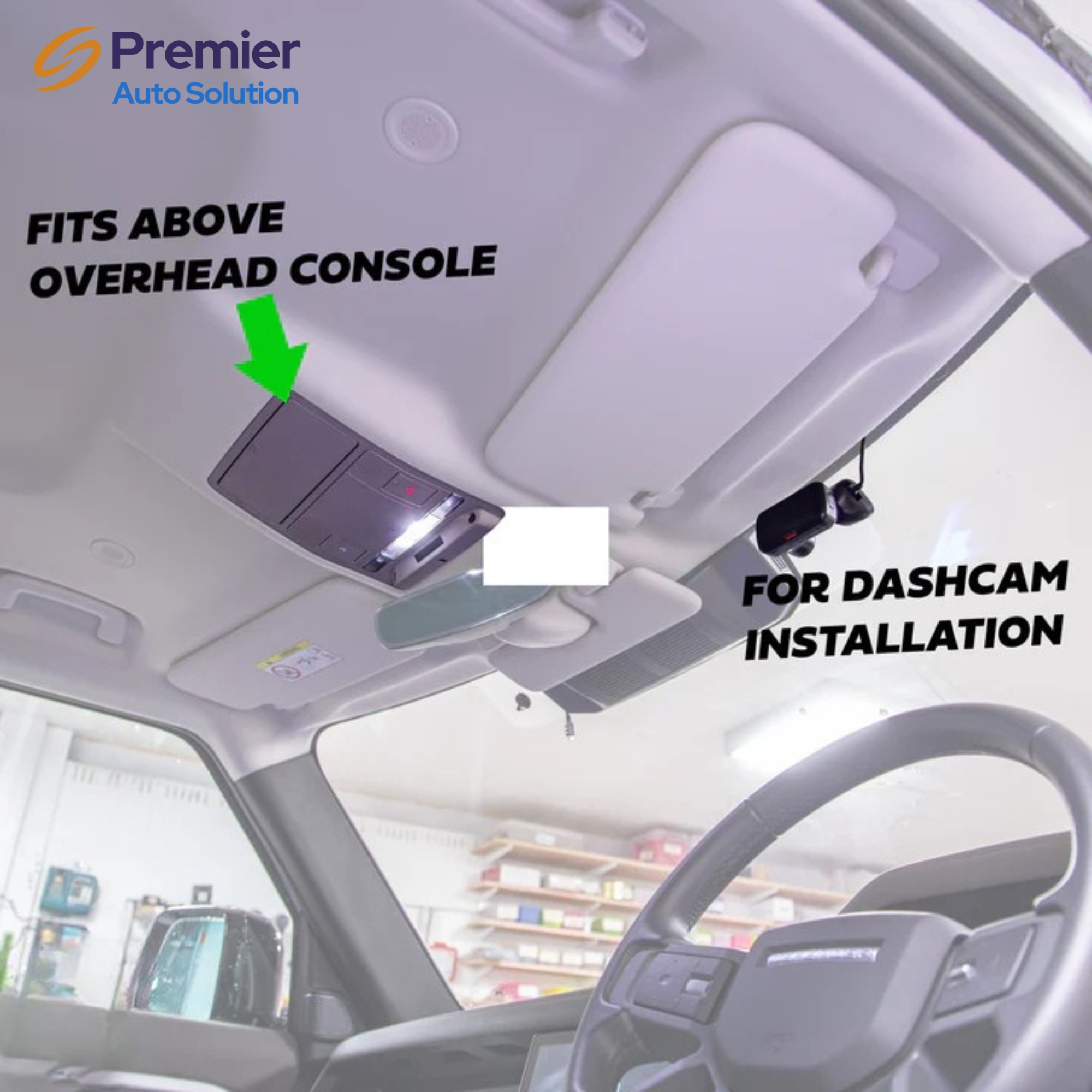

This kit will give you a female USB (5v) port with
ignition live connection in the roof-space area above the overhead
console which can be used to install a dashcam.

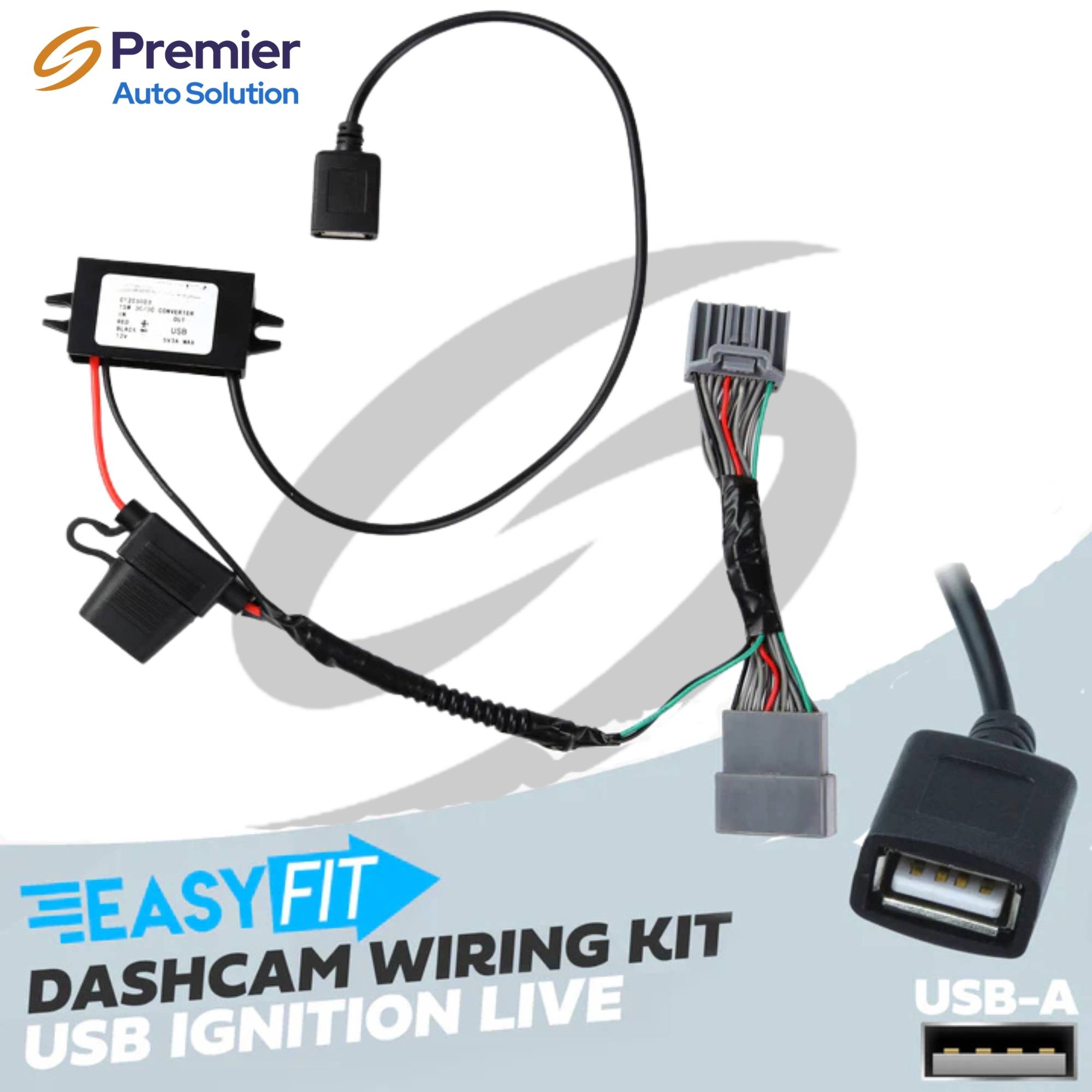

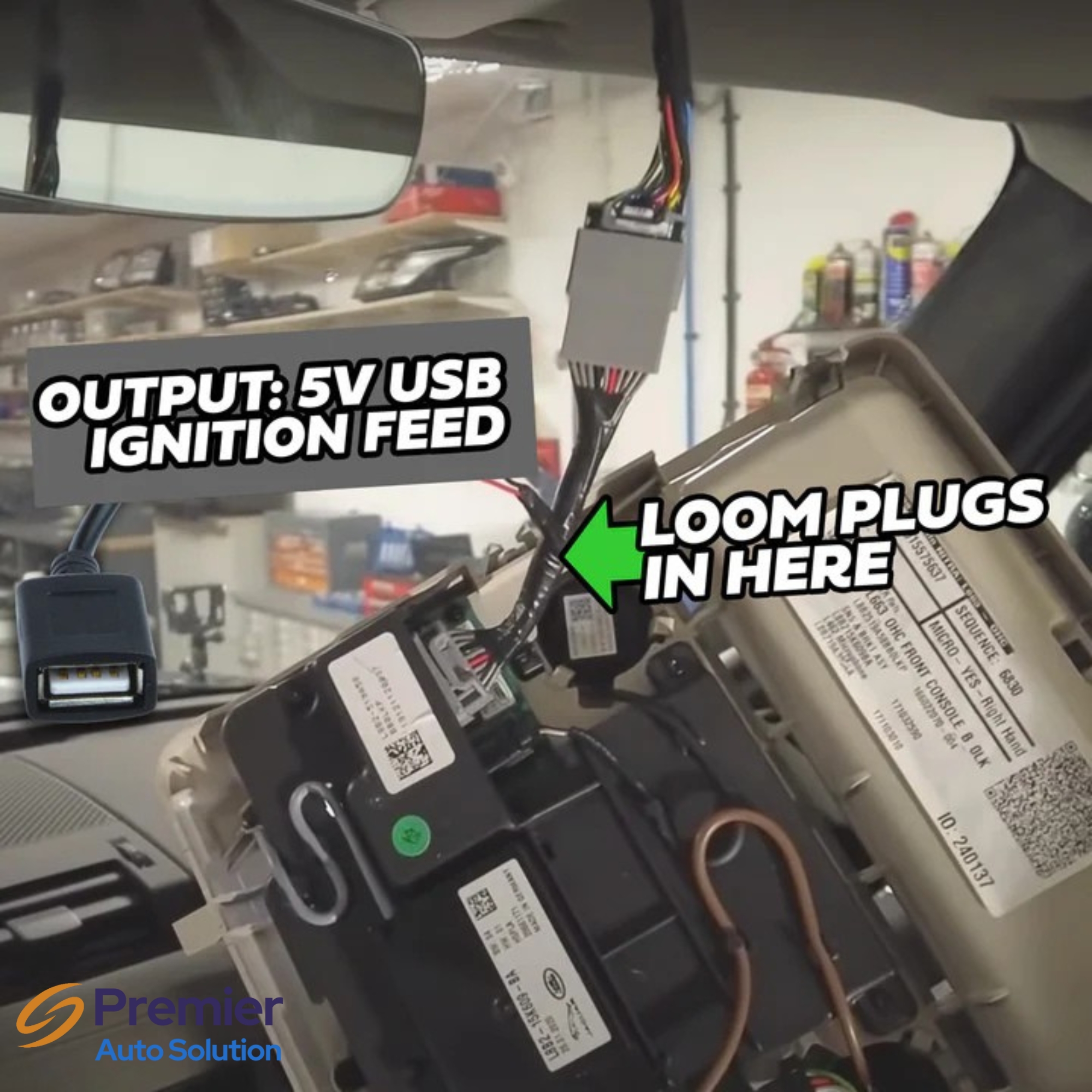

This custom made tap-in loom simply plugs into the
front overhead console and gives you an ignition positive and negative
which is is pre-soldered to a USB port adapter and gives you a high
power (3amp) female ‘USB-A’ port (5V) to plug a dashcam into.

The beauty of this is there is absolutely no
alteration/cutting/splicing needed to your vehicles wiring which may
void your warranty.

This kit is ideal to wire in a dash-cam as it puts
power to where you’ll mount the camera without having to route any long
wires round the screen (plus you’d still need to find somewhere to take
power from).

All you need to do is feed the wire through the
headlining at the top of the windscreen into the roof space – we found a
flexi ruler ideal for this!

A hard-wired solution is much better than using a
cigarette lighter power loom which are just unsightly and also runs the
risk of having it inadvertently unplugged.

We also sell the tap-in loom and USB adapter
separately – please see our other listings to purchase these on their
own.

We also sell the tap-in loom kitted with Nextbase and
Garmin hard wire kits – see our other listings to purchase these.

NOTE – Maximum power output is 15w ( 3 Amps at
5 Volts ) so make sure your USB device is not rated above 15W / 3 Amps

This is not a genuine Land Rover item.

Fitting details

Disconnect your battery -ve lead (under the bonnet)
before fitting the loom to the vehicle – this makes it less likely for
power surges that could damage car circuits when plugging / unplugging
the overhead console.

The ignition live feed comes from the body control
module – if this is overloaded the circuit is isolated and can be
reset with an ignition cycle (turn the car on and off again)

If you have any issues with your car that needs
investigation by a Land Rover dealer it is best to disconnect this
loom so the vehicle is returned to its original configuration.

On some vehicles we have had reports of issues with
DAB reception and also interference with the auto wiper function but
these are not common.

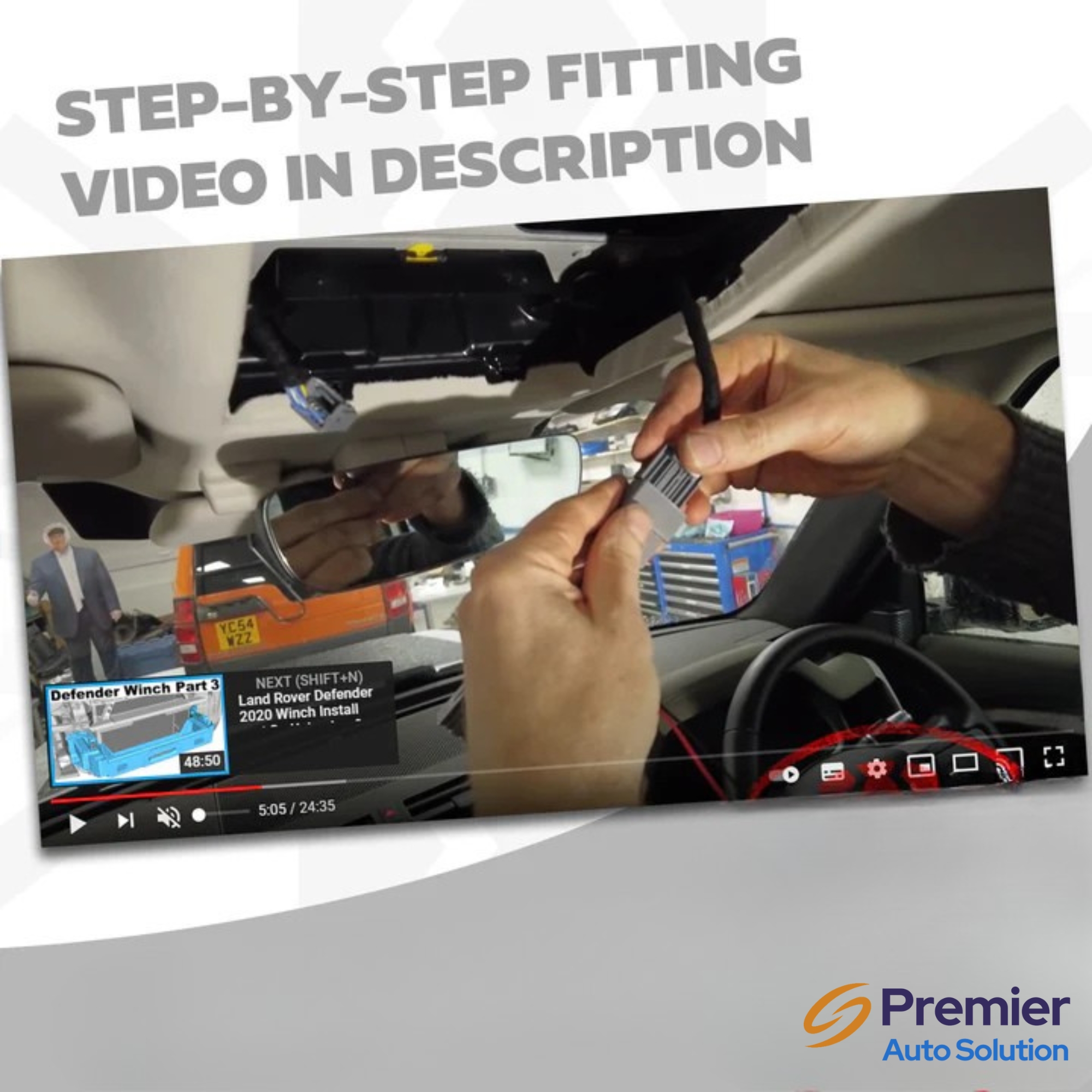

See below video where we fit this loom to our project
Range Rover Evoque

Which vehicles will this
fit?

SAFETY NOTICE: Please do
NOT fit this loom to any other vehicle than it is intended for –
although connectors may appear the same and physically fit, wiring will
differ.

This item WILL
fit the Range Rover Evoque 2 models from 2019 onwards.

This item WILL
fit the Range Rover Evoque 1 with the late type console from around 2014
-2016.

This item WILL
NOT fit the Range
Rover Evoque 1 with the early type console (from 2011 to around 2014)
